MiniCobo 6-axis cobot incl. Control and software

Preview: MiniCobo 6-achsiger Cobot inkl. Steuerung und Software Preview: MiniCobo 6-achsiger Cobot inkl. Steuerung und Software Preview: MiniCobo 6-achsiger Cobot inkl. Steuerung und Software
MiniCobo 6-achsiger Cobot inkl. Steuerung und Software
MiniCobo 6-achsiger Cobot inkl. Steuerung und Software
MiniCobo 6-achsiger Cobot inkl. Steuerung und Software

€6,500.00 *

Prices plus VAT plus shipping costs

available in 1-3 business days

  • Order number: 99.JAKAMINI
  • order no. of the manufacturer MiniCobo
Facebook Twitter LinkedIn Pinterest
Description Evaluations 0
Description
JAKA MiniCobo The JAKA MiniCobo Cobot has a small appearance, a simple and intuitive... more
Close menu
Product information "MiniCobo 6-axis cobot incl. Control and software"

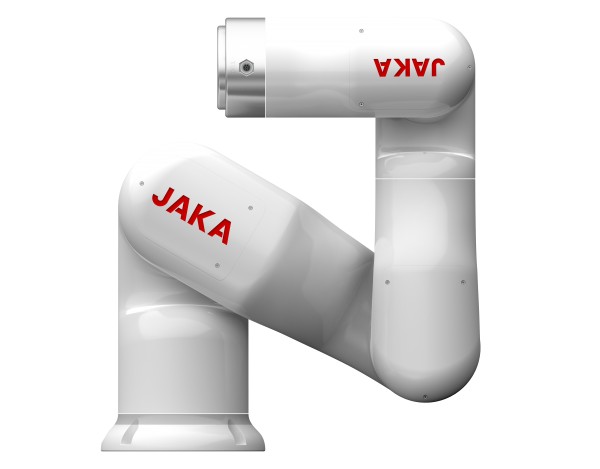

JAKA MiniCobo

The JAKA MiniCobo Cobot has a small appearance, a simple and intuitive operation, a low noise level and a high price-performance ratio.

Payload: 1 kg

Weight: 8.7 kg

Working radius: 576 mm

Accuracy: ±0,1 mm

Tool holder: ISO flange 50

Tool I/O: Digital input 2 / Digital output 2 / Analog input 1

Tool I/O Voltage: 24 V

Tool I/O Size: M8

Rated power: 150 W

Mounting surface: Ø 124 mm

Application environment: IP40 / 0-50 °C

Scope of supply:

JAKA MiniCobo

Control cabinet

Software
