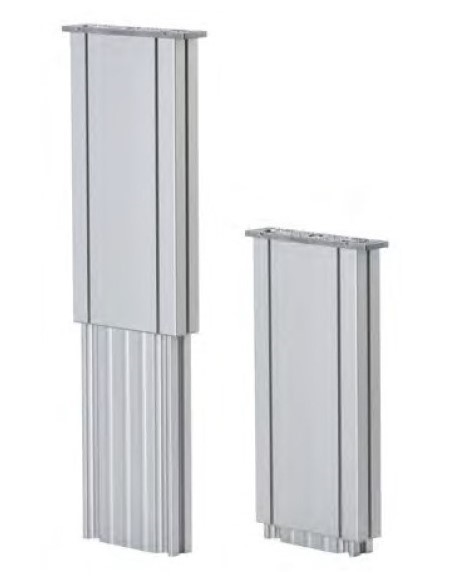

Lifting column HEXALIFT 2.0 Baumeister & Schack

Lifting column HEXALIFT 2.0 Baumeister & Schack

Second generation

cable output variable selectable

pluggable Molex cable - included in delivery!

ESD-capable

New foot plate for mounting similar to the mounting of the head side

Control unit:

for 1 lifting column: Art. No. 99.SYC1-400

for 2 lifting columns: Art. No. 99.SYC2-400

for 3 lifting columns: Art. No. 99.SYC3-400

for 4 lifting columns: 2x Art. No. 99.SYC2-400

Please contact us if you want to use more than 4 lifting columns together.

Additionally needed:

Power cable for the control unit: Art. No. 40.028/1

Hand switch: Art. No. 99.HSSYCLM2EC or 99.HSSYCLD6EC

When using 2 controls:

Power cable for the controls: 2x Art. No. 40.028/1

Manual switch: Art. No. 99.HSSYCLD6EC

Cascading cable: Art. No. 99.KAS-RJ12-SYC-0,9m

Y-distributor: Art. No. 99.SYC-HS-Y-RJ12

Usage:

Industrial assembly workstations and profile area. Six mounting grooves, easy to integrate into new developments or existing installations.

Technology and features:

Compact design

6-fold T-slot

Integrated motor

High torque

Stability and rigidity

Heavy side loads possible

Product description:

Lifting column Hexalift Gen. 2.0 with lug

Height: 580 mm, stroke: 400 mm

Fmax: 3200 N, vmax: 9 mm/s

U: 24 V DC, Imax: 7.0 A, ED: 10% S3

Torques up to 1.200 Nm

Stable connection via M8

Cable output freely selectable
