107242 Vacuum gripper VGP20 by OnRobot

€4,883.00 *

Prices plus VAT plus shipping costs

available in 1-3 business days

  • 99.107242
  • 107242
Facebook Twitter LinkedIn Pinterest
WORLD'S MOST POWERFUL VACUUM GRIPPER Due to its compact design and high number of... more
Product information "107242 Vacuum gripper VGP20 by OnRobot"

WORLD'S MOST POWERFUL VACUUM GRIPPER

Due to its compact design and high number of suction cups, the VGP20 from OnRobot is the most powerful vacuum gripper in the world. With a payload of up to 20kg, its application area is ideally the palletizing of boxes, cardboard and workpieces. The quality of the surface, especially in the case of cardboard, does not play a major role here. This makes it ideal for handling porous objects such as cartons made of thinner, cheaper cardboard or recycled material.

Like any vacuum gripper from OnRobot, the suction ducts of the VGP20 can be controlled individually and thus also several objects can be moved and dropped individually at the same time. With one of the integrated options, the airflow of the gripper can be continuously monitored. If the vacuum is lost, the robot stops immediately and a pop-up window of the gripper software alerts you to the incident.

Seamless integration into the robot of your choice. For example Universal Robots, Nachi, Doosan, Yaskawa, TM Robot, Kawasaki, ABB, Kuka, Hanwha, Fanuc.

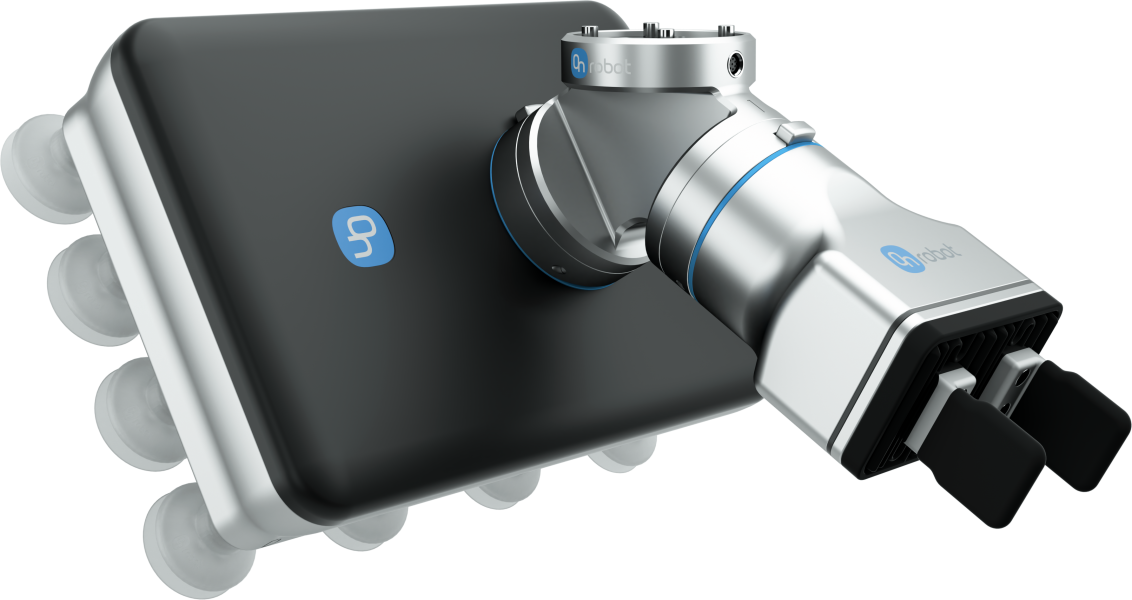

The vacuum gripper is equipped with double gripper functionality, a tool changer and various common suction cup attachments.

Ideal for packaging and palletizing, machine feeding or assembly.

Technical data

max. Payload standard attachment: 20 kg

Suction cups: 16 pieces

Typical gripping time: 0.25 s

Release time typical: 0.40 s

Air flow: 0-48 L/min / 12L per channel

Vacuum: -0.05 to -0.607 bar

Dimensions: 264 x 184 x 92 mm

Grapple mass: 2.55 kg

Power supply: 24V

IP protection class: IP54

Required option for mounting on the robot (one of them):

Single quick coupler - robot side

Dual quick coupler - robot side

HEX QC

Required option for connection to the robot:

Connection kit with Compute Box
